Product Description

Manufactured by Alpen in Austria. The innovative Multicut drill is the perfect tool for drilling through multiple materials. Its ability to drill through Tiles, Masonry, Concrete, Steel, Plastic and Wood with the one bit in one operation reduces time, increases accuracy and reduces tooling requirements.

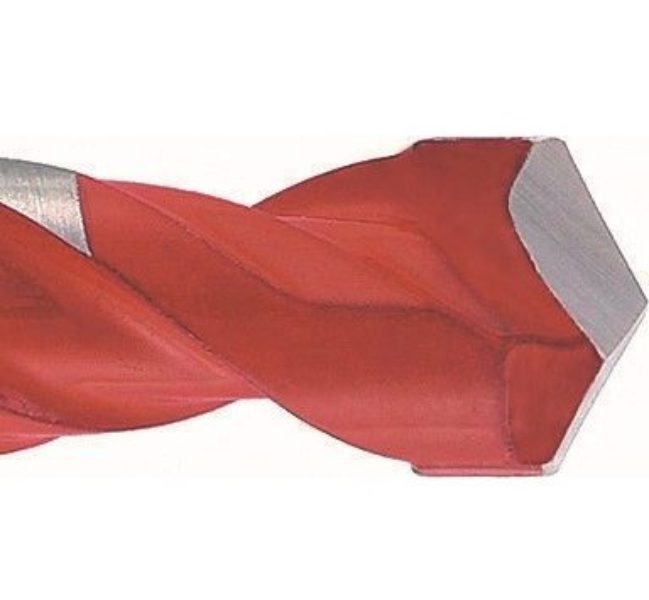

Diamond ground cutting surfaces and the special edge geometry of the Tungsten Carbide Tip enable the Multicut to achieve these results in rotary only drilling mode - no need for hammer.

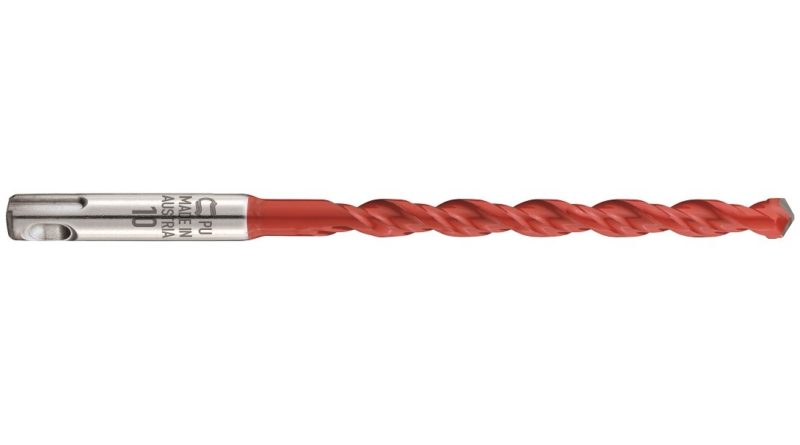

Available with straight shank, 1/4" Hex Shank or SDS Plus. With PGM Sichersafe approval, these top quality Austrian made drill bits are ideal for the professional.

Straight Shank

Ø mm Ø inch Overall Length Working Length Part No
3.0 1/8 60 30 00172003001
4.0 5/32 75 39 00172004001
5.0 3/16 85 39 00172005001
5.5 - 85 39 00729005001
5.5 - 150 85 00729005501
5.5 - 400 300 00730005501
6.0 15/64 100 54 00172006001
6.0 15/64 200 135 00729006001
6.0 15/64 400 300 00730006001
6.5 1/4 100 54 00172006501
6.5 1/4 200 135 00729006501
6.5 1/4 400 300 00730006501
7.0 9/32 100 54 00172007001
7.0 9/32 200 135 00729007001
8.0 5/16 120 80 00172008001
8.0 5/16 200 135 00729008001
8.0 5/16 400 300 00730008001
10.0 3/8 120 80 00172010001
10.0 3/8 200 135 00729010001
10.0 3/8 400 300 00730010001
12.0 15/32 150 90 00172012001
12.0 15/32 220 150 00729012001
12.0 15/32 400 300 00730012001
14.0 9/16 220 150 00729014001
14.0 9/16 400 300 00730014001
16.0 5/8 400 300 00730016001

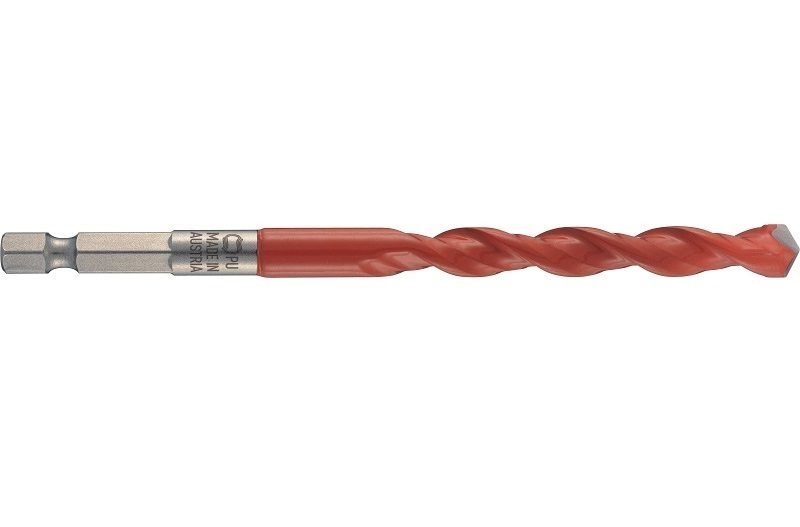

1/4" Hex Shank

Ø mm Ø inch Overall Length Working Length Part No
4.0 5/32 100 39 00272004001
5.0 3/16 100 39 00272005001
5.5 - 100 39 00272005501
6.0 15/64 100 54 00272006001
8.3 5/16 120 80 00272008001
10.0 3/8 120 80 00272010001

Related Resources

Resource Brand Type Size Download
Multicut Alpen Data Sheet 78.45 KB
