Product Description

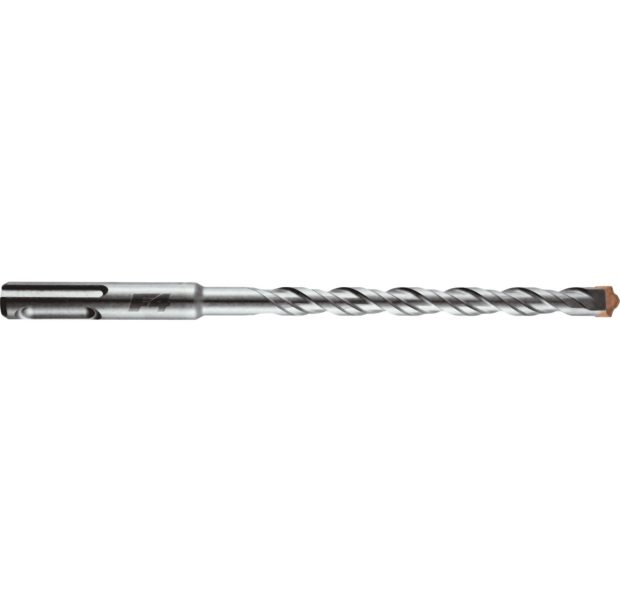

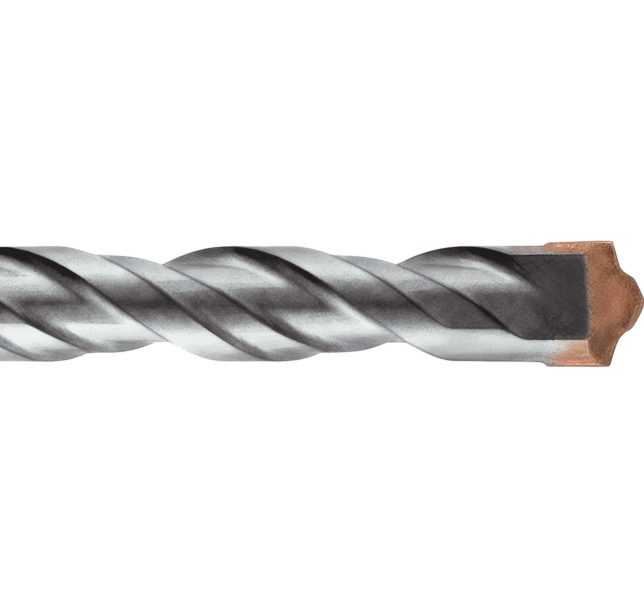

The SDS Plus F4 two-cutter hammer drill with its patented stepped profile tip is low wearing and has a very long service life. It is a highly efficient drill bit for heavy-duty drilling in concrete, natural stone and brickwork.
All Alpen masonry drill bits are PGM marked. The PGM mark is a world-wide certification to signify safety and quality of hammer drill bits.
The mark is only given to manufacturers using state of the art manufacturing equipment controlled by a quality assurance system.
SDS Plus F4
| Ø mm | Overall Length | Working Length | Part No |
|---|---|---|---|
| 4.0 | 110 | 50 | 00807004001 |
| 4.0 | 160 | 100 | 00817004001 |
| 5.0 | 110 | 50 | 00807005001 |
| 5.0 | 160 | 100 | 00817005001 |
| 5.0 | 210 | 150 | 00827005001 |
| 5.0 | 310 | 250 | 00847005001 |
| 5.0 | 450 | 400 | 00877005001 |
| 5.5 | 110 | 50 | 00807005501 |
| 5.5 | 160 | 100 | 00817005501 |
| 5.5 | 210 | 150 | 00827005501 |
| 5.5 | 260 | 200 | 00837005501 |
| 5.5 | 310 | 250 | 00847005501 |
| 5.5 | 450 | 400 | 00877005501 |
| 6.0 | 110 | 50 | 00807006001 |
| 6.0 | 160 | 100 | 00817006001 |
| 6.0 | 210 | 150 | 00827006001 |
| 6.0 | 260 | 200 | 00837006001 |
| 6.0 | 310 | 250 | 00847006001 |
| 6.0 | 450 | 400 | 00877006001 |
| 6.5 | 110 | 50 | 00807006501 |
| 6.5 | 160 | 100 | 00817006501 |
| 6.5 | 210 | 150 | 00827006501 |
| 6.5 | 260 | 200 | 00837006501 |
| 6.5 | 310 | 250 | 00847006501 |
| 6.5 | 450 | 400 | 00877006501 |
| 7.0 | 110 | 50 | 00807007001 |
| 7.0 | 160 | 100 | 00817007001 |
| 7.0 | 210 | 150 | 00827007001 |
| 7.0 | 260 | 200 | 00837007001 |
| 7.0 | 310 | 250 | 00847007001 |
| 8.0 | 110 | 50 | 00807008001 |
| 8.0 | 160 | 100 | 00817008001 |
| 8.0 | 210 | 150 | 00827008001 |
| 8.0 | 260 | 200 | 00837008001 |
| 8.0 | 310 | 250 | 00847008001 |
| 8.0 | 450 | 400 | 00877008001 |
| 9.0 | 160 | 100 | 00817009001 |
| 9.0 | 210 | 150 | 00827009001 |
| 9.5 | 160 | 100 | 00817009501 |
| 10.0 | 110 | 50 | 00807010001 |
| 10.0 | 160 | 100 | 00817010001 |
| 10.0 | 210 | 150 | 00827010001 |
| 10.0 | 260 | 200 | 00837010001 |
| 10.0 | 310 | 250 | 00847010001 |
| 10.0 | 450 | 400 | 00877010001 |
| 10.0 | 600 | 550 | 00887010001 |
| 10.0 | 1000 | 950 | 00914010001 |
| 11.0 | 160 | 100 | 00817011001 |
| 11.0 | 260 | 200 | 00837011001 |
| 12.0 | 160 | 100 | 00817012001 |
| 12.0 | 210 | 150 | 00827012001 |
| 12.0 | 260 | 200 | 00837012001 |
| 12.0 | 310 | 250 | 00847012001 |
| 12.0 | 450 | 400 | 00877012001 |
| 12.0 | 600 | 550 | 00887012001 |
| 12.0 | 800 | 740 | 00913012001 |
| 12.0 | 1000 | 950 | 00914012001 |
| 13.0 | 160 | 100 | 00817013001 |
| 13.0 | 260 | 200 | 00837013001 |
| 13.0 | 310 | 250 | 00847013001 |
| 13.0 | 450 | 400 | 00877013001 |
| 14.0 | 160 | 100 | 00817014001 |
| 14.0 | 210 | 150 | 00827014001 |
| 14.0 | 260 | 200 | 00837014001 |
| 14.0 | 310 | 250 | 00847014001 |
| 14.0 | 450 | 400 | 00877014001 |
| 14.0 | 600 | 550 | 00887014001 |
| 14.0 | 1000 | 950 | 00914014001 |
| 15.0 | 160 | 100 | 00817015001 |
| 15.0 | 210 | 150 | 00827015001 |
| 15.0 | 260 | 200 | 00837015001 |
| 15.0 | 450 | 400 | 00877015001 |
| 16.0 | 160 | 100 | 00817016001 |
| 16.0 | 210 | 150 | 00827016001 |
| 16.0 | 260 | 200 | 00837016001 |
| 16.0 | 310 | 250 | 00847016001 |
| 16.0 | 450 | 400 | 00877016001 |
| 16.0 | 600 | 550 | 00887016001 |
| 16.0 | 800 | 740 | 00913016001 |
| 16.0 | 1000 | 950 | 00914016001 |
| 17.0 | 210 | 150 | 00827017001 |
| 18.0 | 210 | 150 | 00827018001 |
| 18.0 | 260 | 200 | 00837018001 |
| 18.0 | 310 | 250 | 00847018001 |
| 18.0 | 450 | 400 | 00877018001 |
| 18.0 | 600 | 550 | 00887018001 |
| 18.0 | 1000 | 950 | 00914018001 |
| 19.0 | 210 | 150 | 00827019001 |
| 19.0 | 310 | 250 | 00847019001 |
| 19.0 | 450 | 400 | 00877019001 |
| 20.0 | 210 | 150 | 00827020001 |
| 20.0 | 260 | 200 | 00837020001 |
| 20.0 | 310 | 250 | 00847020001 |
| 20.0 | 450 | 400 | 00877020001 |
| 20.0 | 600 | 550 | 00887020001 |
| 20.0 | 800 | 740 | 00913020001 |
| 20.0 | 1000 | 950 | 00914020001 |
| 22.0 | 260 | 200 | 00837022001 |
| 22.0 | 310 | 250 | 00847022001 |
| 22.0 | 450 | 400 | 00877022001 |
| 24.0 | 260 | 200 | 00837024001 |
| 24.0 | 310 | 250 | 00847024001 |
| 24.0 | 450 | 400 | 00877024001 |
| 24.0 | 600 | 550 | 00887024001 |
| 25.0 | 260 | 200 | 00837025001 |
| 25.0 | 310 | 250 | 00847025001 |
| 25.0 | 450 | 400 | 00877025001 |
| 25.0 | 600 | 550 | 00887025001 |
| 25.0 | 1000 | 950 | 00914025001 |
| 26.0 | 260 | 200 | 00837026001 |
| 26.0 | 450 | 400 | 00877026001 |
