Product Description

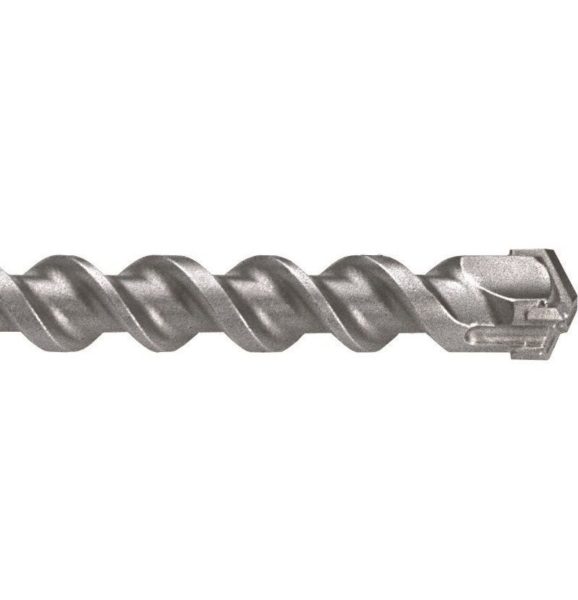

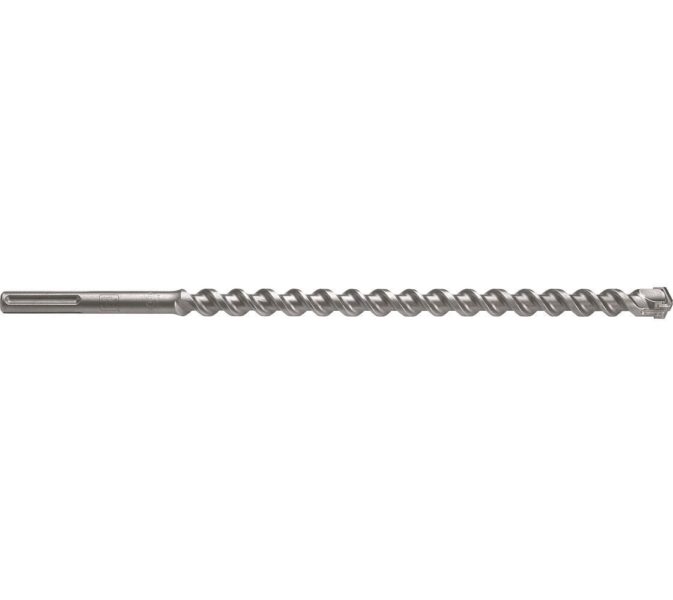

The SDS Max hammer drill with tungsten carbide cutting edges is ideal for heavy-duty drilling in reinforced concrete, natural stone, brickwork and granite.

All Alpen masonry drill bits are PGM marked. The PGM mark is a world-wide certification to signify safety and quality of hammer drill bits.

The mark is only given to manufacturers using state of the art manufacturing equipment controlled by a quality assurance system.

SDS Max

Ø mm Cutting Edges Overall Length Working Length Part No
12.0 2 340 200 00889012001
12.0 2 540 400 00891012001
12.0 2 740 600 00893012001
13.0 2 340 200 00889013001
13.0 2 540 400 00891013001
14.0 2 340 200 00889014001
14.0 2 540 400 00891014001
15.0 2 340 200 00889015001
15.0 2 540 400 00891015001
16.0 3 340 200 00889016001
16.0 3 540 400 00891016001
16.0 3 940 800 00894016001
18.0 4 340 200 00889018001
18.0 4 540 400 00891018001
18.0 4 940 800 00894018001
19.0 4 540 400 00891019001
20.0 4 340 200 00889020001
20.0 4 540 400 00891020001
20.0 4 940 800 00894020001
22.0 4 340 200 00889022001
22.0 4 540 400 00891022001
22.0 4 940 800 00894022001
22.0 4 1320 1200 00895022001
24.0 4 340 200 00889024001
24.0 4 540 400 00891024001
25.0 4 340 200 00889025001
25.0 4 540 400 00891025001
25.0 4 940 800 00894025001
25.0 4 1320 1200 00895025001
26.0 4 340 200 00889026001
26.0 4 540 400 00891026001
28.0 4 340 200 00890028001
28.0 4 540 400 00892028001
28.0 4 750 600 00893028001
30.0 4 340 200 00890030001
30.0 4 540 400 00892030001
32.0 4 340 200 00890032001
32.0 4 540 400 00892032001
32.0 4 940 800 00894032001
32.0 4 1320 1200 00895032001
35.0 4 340 200 00890035001
35.0 4 540 400 00892035001
35.0 4 740 600 00893035001
38.0 4 340 200 00890038001
38.0 4 540 400 00892038001
45.0 4 540 400 00892045001
50.0 4 540 400 00892050001
