Product Description
SDS Max hammer tools have an 18mm round body with an 18mm fluted fitting spigot It is a very widely used system suitable for light to medium duty with machines rated over 5Kg or up to 25 Joules. Most of these hammer tools on this page are to be used in the hammer only mode. Snap-lock adapter and drill holders may be used in the rotate or rotate / hammer mode
By allowing axial movement of the shank, SDS Max chisels are struck directly by the machine hammer, and not through the chuck. This produces an efficient and durable system.
SDS Max steels come in many configurations including moil (point), chisel, wide chisels, bent chisels, special purpose chisels, spades, bushing tools and ground rod drivers. Tapered adaptors are available for floor scrapers and tamper plates.
For more information on fittings, see pages EH-25 and EH-26 of the Action Hammer Tools catalogue.
| Working End | Moil Point |
| Overall Length | 300 |
| Part No | 23901300 |
| Working End | Flat Chisel |
| Overall Length | 300 |
| Part No | 23902300 |
| Working End | 50mm Wide Chisel |
| Overall Length | 300 |
| Part No | 23904300 |

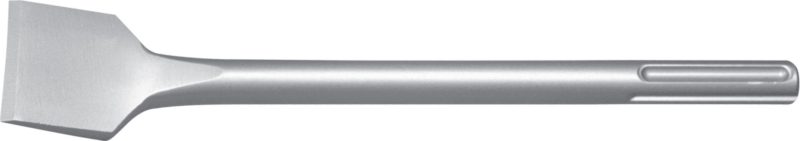

| Working End | 50mm Wide Chisel, Bent |
| Overall Length | 300 |
| Part No | 23905300 |
| Working End | 60mm Digging Chisel |
| Overall Length | 400 |
| Part No | 23906400 |

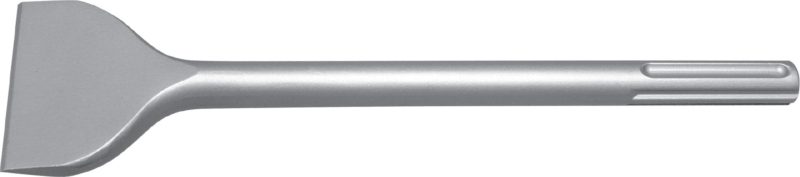

| Working End | 75mm Wide Chisel |
| Overall Length | 300 |
| Part No | 23907300 |
| Working End | 75mm Wide Chisel, Bent |
| Overall Length | 300 |
| Part No | 23908300 |
| Working End | 25mm Hollow Gouge |
| Overall Length | 300 |
| Part No | 23909300 |
| Working End | 33mm Channel Chisel |
| Overall Length | 300 |
| Part No | 23911300 |

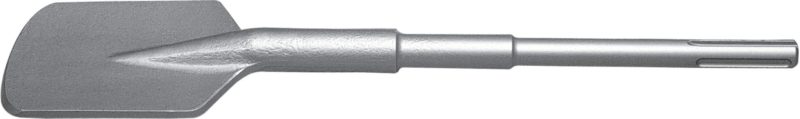

| Working End | 110mm Clay Spade |
| Overall Length | 500 |
| Part No | 23912500 |

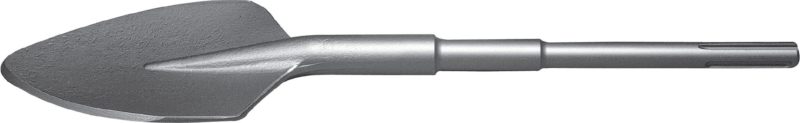

| Working End | 135mm Pointed Spade |
| Overall Length | 550 |
| Part No | 23913550 |
| Working End | 115 Wide Chisel |
| Overall Length | 350 |
| Part No | 23914350 |
| Working End | Adapter for Floor Scraper |
| Overall Length | 400 |
| Part No | 23915400 |

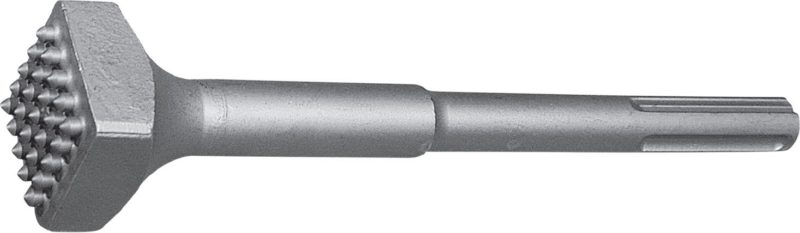

| Working End | 45mm Carbide Bushing Tool |
| Overall Length | 250 |
| Part No | 23918250 |
| Working End | 125mm Asphalt |
| Overall Length | 500 |
| Part No | 23919500 |
| Working End | 45mm Bushing Tool |
| Overall Length | 240 |
| Part No | 23920240 |
| Working End | K-Taper Drill Holder |
| Overall Length | 180 |
| Part No | 23922180 |
| Working End | Ground Rod Driver 1/2 |
| Overall Length | 250 |
| Part No | 23936250 |
| Working End | Ground Rod Driver 5/8 |
| Overall Length | 250 |
| Part No | 23923250 |

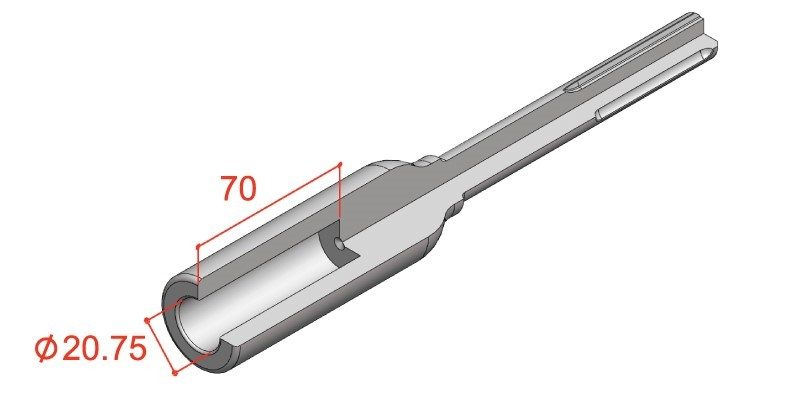

| Working End | Ground Rod Driver 3/4 |
| Overall Length | 250 |
| Part No | 23924250 |
| Working End | Snap Lock Adaptor for SDS Plus Drill Bits |
| Overall Length | 220 |
| Part No | 23925220 |
| Working End | Slotting Tool with Carbide Tip |
| Overall Length | 280 |
| Part No | 23928280 |
| Working End | Adapter for E38 Tamper Plate |
| Overall Length | 300 |
| Part No | 23929300 |
| Working End | Star Picket Driver Ø50mm |
| Overall Length | 200 |
| Part No | 23938200 |

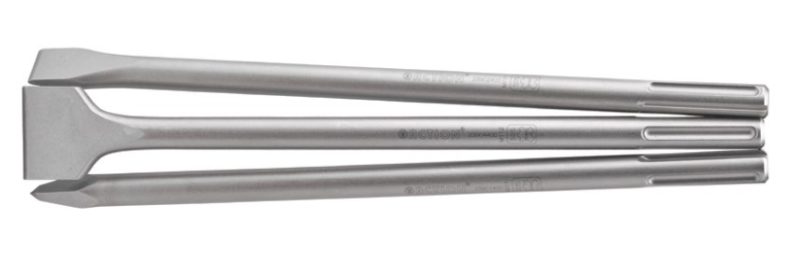

| Working End | Moil, Chisel and 50 Wide Chisel |
| Overall Length | 400 |
| Part No | P2390301 |
