Product Description

Action Tools Corporation is certified to ISO 9001:2008 and has been manufacturing tool-holders for 15 years. Most of these are exported, including to advanced manufacturing nations such as Germany and Japan.

Stringent quality control procedures for material, manufacturing, testing and inspection ensure that hardness, dimensional, balance and run-out specifications are met.

All BT tool-holders stocked by Impact Tools are coolant through and are manufactured to JIS B6339. RTP Rigid Tap Holder. For holding tapping tools with no axial movement between tap and machine These holders are designed for rigid or synchronous feed tapping applications.

Suitable for both right and left hand tapping

TTP Tension / Compression Tap Holder. For holding tapping tools whilst allowing axial movement between tap and machine.
These holders are designed to compensate for both positive and negative feed variances.

Suitable for both right and left hand tapping

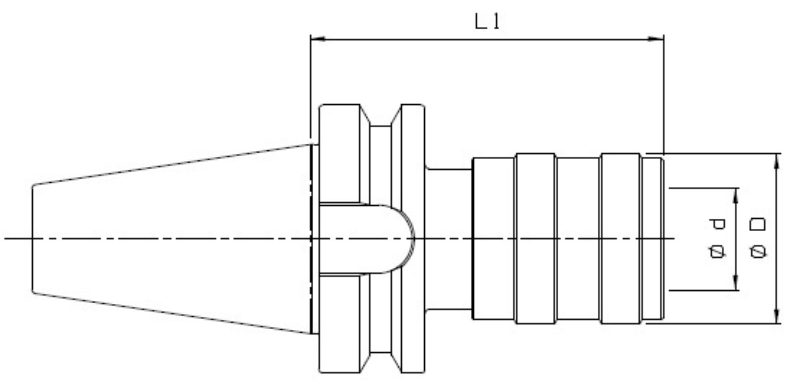

BT40-Rigid Tap Holder

d D L1 Part No
19 40 75 BT40-RTP1A-75
31 59 95 BT40-RTP2A-95
48 82 120 BT40-RTP3A-120

BT50-Rigid Tap Holder

d D L1 Part No
19 40 90 BT50-RTP1A-90
31 59 95 BT50-RTP2A-95
48 82 125 BT50-RTP3A-125

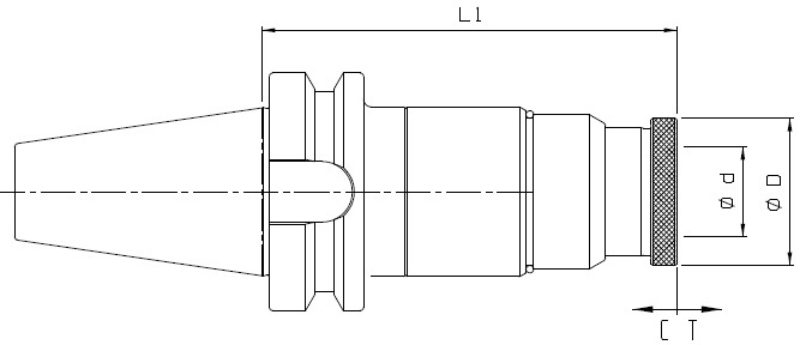

BT40-Compression Tap Holder

d D L1 Part No
19 38 66 BT40-TTP1A-66
31 55 115 BT40-TTP2A-115
48 84 190 BT40-TTP3A-190

BT50-Compression Tap Holder

d D L1 Part No
19 38 110 BT50-TTP1A-110
31 55 160 BT50-TTP2A-160
48 84 190 BT50-TTP3A-190
