Product Description
Action Tools Corporation is certified to ISO 9001:2008 and has been manufacturing tool-holders for 15 years. Most of these are exported, including to advanced manufacturing nations such as Germany and Japan.
Stringent quality control procedures for material, manufacturing, testing and inspection ensure that hardness, dimensional, balance and run-out specifications are met.

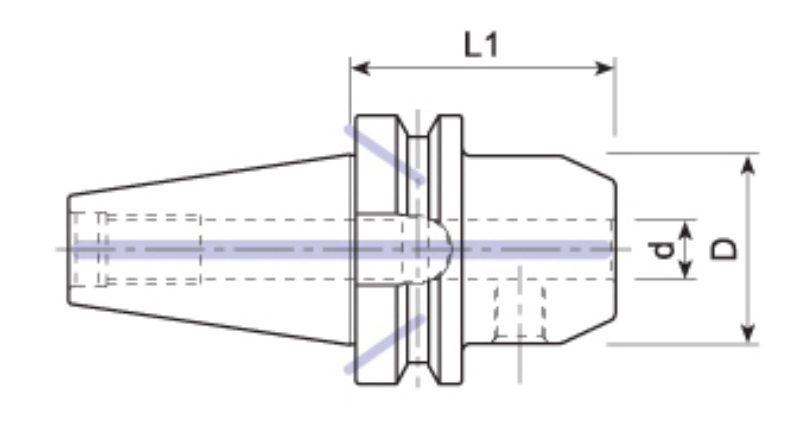

All BT tool-holders stocked by Impact Tools are coolant through and are manufactured to JIS B6339. HEM End Mill Holder, DIN6359. (Commonly called Side Locker). For holding milling bits etc. with Weldon shanks.
Case hardened to HRC60, these holders have a runout <.005mm
BT40
| d | Shape | D | L1 | Balance | Part No |
|---|---|---|---|---|---|
| 6 | A | 25 | 50 | G6.3 20,000rpm | BT40-HEM6C-50 |
| 6 | A | 25 | 100 | G6.3 20,000rpm | BT40-HEM6C-100 |
| 8 | A | 28 | 50 | G6.3 20,000rpm | BT40-HEM8C-50 |
| 8 | A | 28 | 100 | G6.3 20,000rpm | BT40-HEM8C-100 |
| 10 | A | 35 | 63 | G6.3 20,000rpm | BT40-HEM10C-63 |
| 10 | A | 35 | 100 | G6.3 20,000rpm | BT40-HEM10C-100 |
| 12 | A | 42 | 63 | G6.3 20,000rpm | BT40-HEM12C-63 |
| 16 | A | 45 | 35 | G6.3 20,000rpm | BT40-HEM16C-35 |
| 16 | A | 48 | 63 | G6.3 20,000rpm | BT40-HEM16C-63 |
| 16 | A | 48 | 100 | G6.3 20,000rpm | BT40-HEM16C-100 |
| 20 | A | 52 | 63 | G6.3 20,000rpm | BT40-HEM20C-63 |
| 20 | A | 52 | 100 | G6.3 20,000rpm | BT40-HEM20C-100 |
| 25 | B | 45 | 35 | G6.3 20,000rpm | BT40-HEM25C-35 |
| 25 | B | 45 | 60 | G6.3 20,000rpm | BT40-HEM25C-60 |
| 25 | B | 65 | 90 | G6.3 20,000rpm | BT40-HEM25C-90 |
| 32 | B | 62 | 65 | G6.3 20,000rpm | BT40-HEM32C-65 |
| 32 | B | 72 | 100 | G6.3 20,000rpm | BT40-HEM32C-100 |
| 40 | B | 80 | 120 | G6.3 20,000rpm | BT40-HEM40C-120 |
BT50
| d | Shape | D | L1 | Balance | Part No |
|---|---|---|---|---|---|
| 6 | A | 25 | 63 | G6.3 15,000rpm | BT50-HEM6C-63 |
| 10 | A | 35 | 63 | G6.3 15,000rpm | BT50-HEM10C-63 |
| 12 | A | 42 | 80 | G6.3 15,000rpm | BT50-HEM12C-80 |
| 16 | A | 48 | 80 | G6.3 15,000rpm | BT50-HEM16C-80 |
| 18 | A | 50 | 80 | G6.3 15,000rpm | BT50-HEM18C-80 |
| 20 | A | 52 | 80 | G6.3 15,000rpm | BT50-HEM20C-80 |
| 20 | A | 52 | 100 | G6.3 15,000rpm | BT50-HEM20C-100 |
| 20 | A | 52 | 160 | G6.3 15,000rpm | BT50-HEM20C-160 |
| 25 | B | 65 | 40 | G6.3 15,000rpm | BT50-HEM25C-40 |
| 25 | B | 65 | 100 | G6.3 15,000rpm | BT50-HEM25C-100 |
| 25 | B | 65 | 160 | G6.3 15,000rpm | BT50-HEM25C-160 |
| 32 | B | 72 | 105 | G6.3 15,000rpm | BT50-HEM32C-105 |
| 40 | B | 80 | 110 | G6.3 15,000rpm | BT50-HEM40C-110 |
| 40 | B | 80 | 160 | G6.3 15,000rpm | BT50-HEM40C-160 |
